Description
electric cycle motor kit electric cycle kit ebike controller
Bafang BBS02B 48V 500W Mid Motor Kit Electric Bike Samsung 17.5AH Battery E Bike Conversion Kit

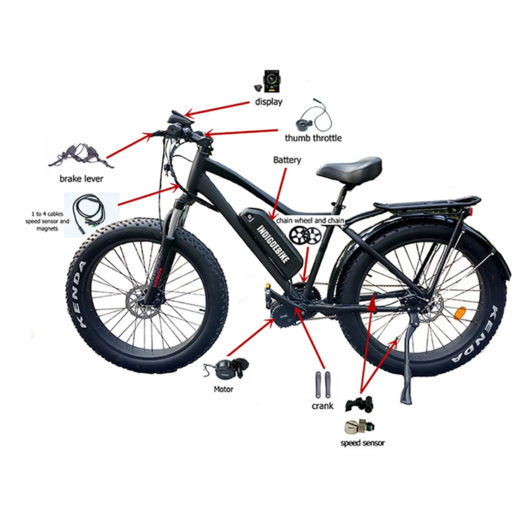

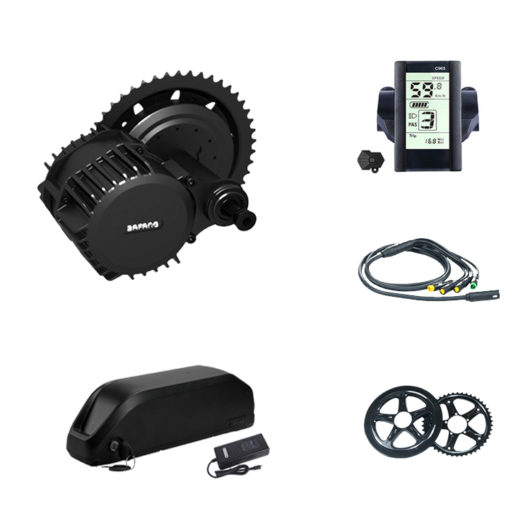

Product list
|

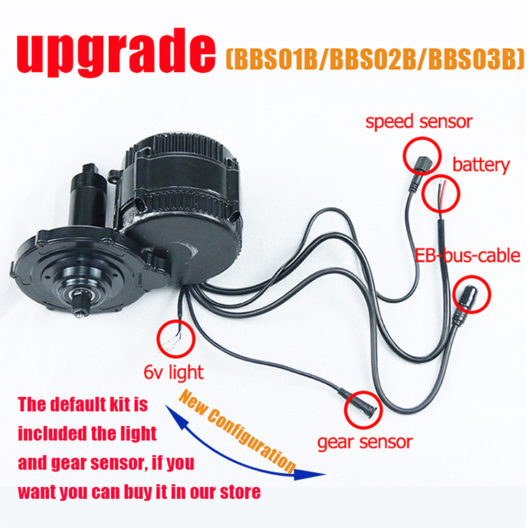

Bafang Motor 48V 500W
|
1pc
|
|
LCD Display C965
|
1pc
|
|

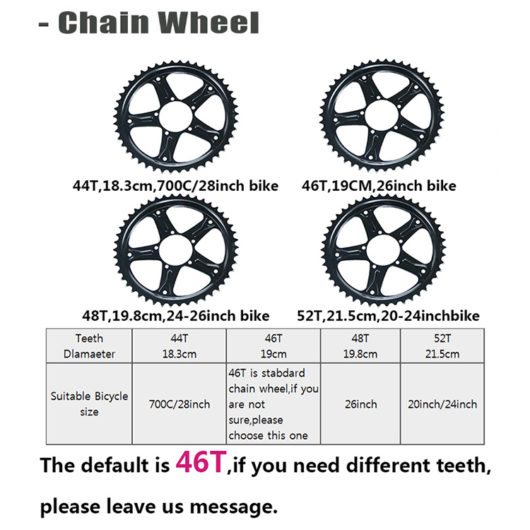

Chain wheel 44T 46T 48T 52T (Option)
The default is 46T
|
1pc
|
|
Chain wheel cover
|
1pc
|
|
Crank
|
1pair
|
|
Brake Lever
|
1pair
|
|
Speed Sensor
|
1pc
|
|
1 to 4 Cable
|
1pc
|
|
Nuts
|
1pack
|
|
Thumb throttle
|
1pc
|
|

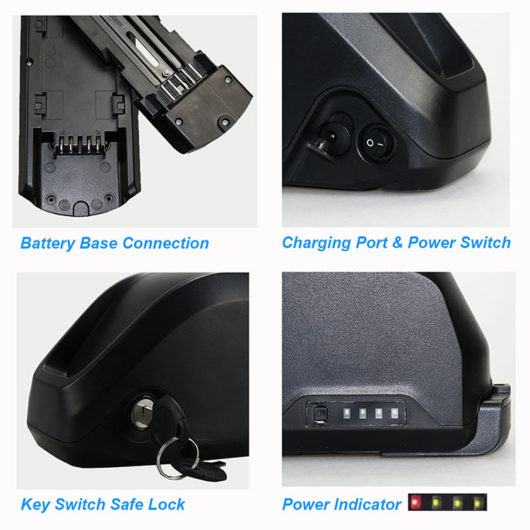

Lithium Battery
Samsung 48V 17.5AH
|
1pc
|
|
Charger
US/UK/AU/EU (Option)
|
1pc
|
|
Motor Battery Connection Cable (Anderson / Bullet interface)
|
1pc
|
Product Paramenters
|
Model type
|
BBS02B 48V 500W
|
||||||
|
Battery type
|
Samsung Cell 48V 17.5AH
|
||||||
|
Battery Size
|
368*90*113mm
|
||||||
|
Bottom Bracke Length
|
68mm
|
||||||
|
Motor Kits Weight
|
6kg
|
||||||
|
Battery weight
|
5.45kg
|
||||||
|
No Load Speed(RPM)
|
126
|
||||||
|
Load Speed(RPM)
|
118
|
||||||
|
MAX Torque
|
100 N.m
|
||||||
|
Efficiency
|
> 80%
|
||||||
|
PAS Sensor
|
Speed Sensor
|
||||||
|
Reduction Ratio
|
1 : 21.9
|
||||||
|
Waterproof Grade
|
IP65
|
||||||
|
Operating Temperature
|
-20-45℃
|
||||||
|
Certificate
|
ROHS,CE
|
||||||
|
Max speed
|
35km/h
|
||||||
|
Battery Protection Function
|
Over charge, Over discharge,Over current, Short circuit, Balance
|
||||||
|
Product
|
Warranty Time
|
Condition
|
|
Motor
|
12 Months
|
12 months quality warranty(warranty isn’t valid for any damage due to wrong operation)
|
|
Battery
|
12 Months
|
12 months quality warranty(warranty isn’t valid for any damage due to wrong operation)
|
|
Accessories
|
30 Days
|
30 days quality warranty(warranty isn’t valid for any damage due to wrong operation)
|
|
Battery Charger
|
18 Months
|
18 months quality warranty(warranty isn’t valid for any damage due to wrong operation)
|
Note
1.If your brake lever is Hydraulic Brake and you choose to ship it from China.We can upgrade the ebrake to brake sensor.Please leave a message when you place the order. 2.We supply 44T 46T 48T 52T chain wheel（The default is 46T） If you need replace.Please also leave a message.Thanks. 3.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you. 4.This kit is not for Carbon fiber bicycle. 5.If your country is Norway, please send your address and zip code to check if there is battery service to your city before you order this e-bike conversion kit with battery. 6. Battery and motor will send separately and you will receive 2 parcels, we will give you 2 tracking numbers too! 7. According to different country and region, battery parcel will delay 7-15 days to arrive. Tips Our motor mainly uses DHL transportation, and some countries use DPD transportation; the main battery transportation is UPS and DPD. Overseas warehouses can be shipped with GLS. If your area is in a remote area, we will charge you a certain amount of remote service fees. If your address is in an island,please contact us before order, so that we can check whether we can arrange shipping to you. solution *You can pay the postage for free, but the amount is relatively large, it is more expensive. * Do you have relatives or friends living in a distant city? (We can send it to him for free, then ask him to send the goods to you. That would be a good choice)
